Overview

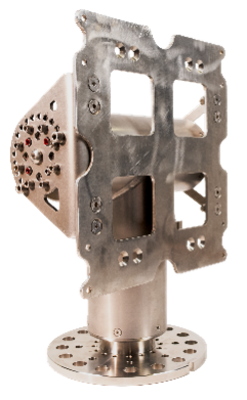

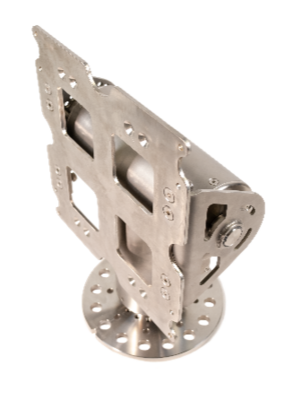

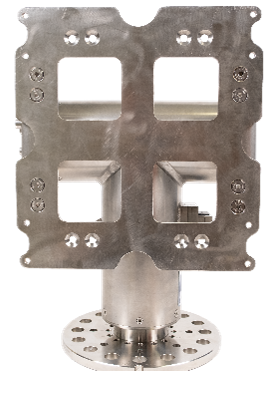

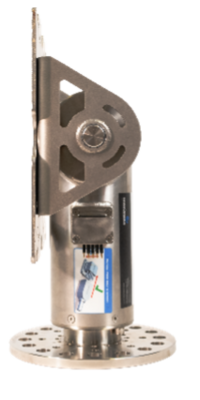

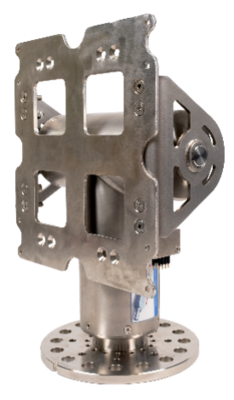

The fourth generation of our Integrated Pan and Tilt Unit (IPT) units operate as an integrated solution within the CodaOctopus^® Underwater Survey Explorer (USE) software application and is now lighter and has a smaller form factor than the previous IPT. The software integration of the IPT with the real-time 3D sonar eliminates the need for multiple patch testing during mapping and inspection tasks. All angular and positional offsets are dynamically calculated within the software for simple and accurate operation.

Capable of station holding the 3D sonar systems in hydro-dynamic environments, the units deliver a maximum of 94-newton meter torque. Enclosed in rugged stainless-steel housings, the units are designed for operation to depths of 30, 500, and 3000 meters. Our IPT units are also available in aluminium and titanium.

Incorporating high-torque motors, low-backlash gearboxes, and high-precision encoders as standard, the units meet the demanding operational requirements of marine applications.
