Overview

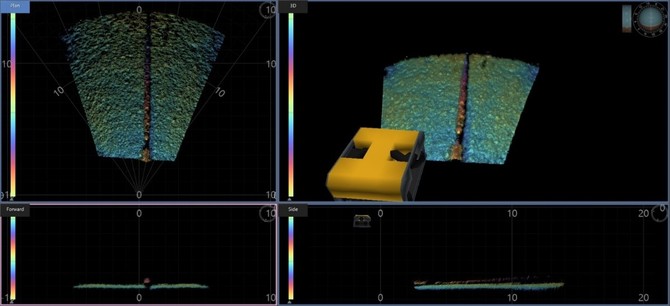

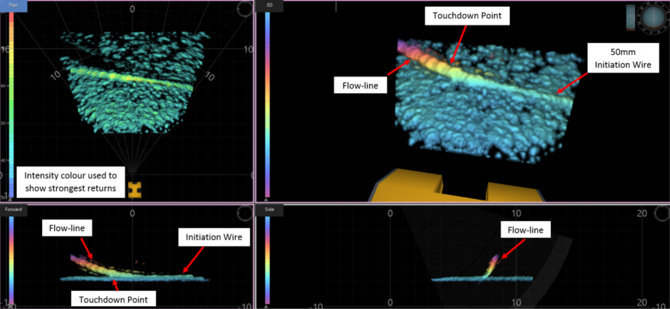

Similar in concept to 3D Survey Monitor, Vantage Visualization Module (VVM) is specifically aimed at ROV and vehicle control applications where the vehicle operator requires a multi-aspect view of the Live data without the need to touch the display or adjust visual controls - a simple hands-free visualization system. The user can configure up to 4 different views of the same real-time data - essential for ROV and vehicle manipulation and control. The views include a top-down "birds-eye" perspective similar to traditional sector scan system and is useful ranging, a Side Profile view useful for obstacle avoidance and altitude planning, a Front View which puts the viewers "eyes" directly on the front of the vehicle for a 1st person perspective view and finally our patented 3D view which can be oriented, zoomed and panned at will by the user.

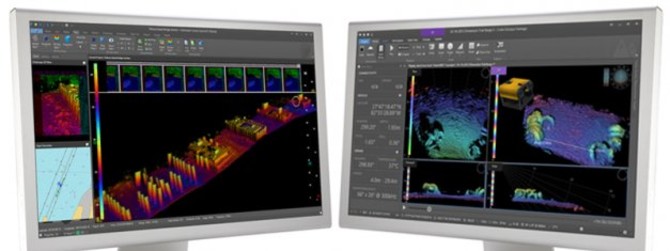

The Vantage Visualization Module is an additional module to Underwater Survey Explorer. Using the Combined USE and VVM - the ROV Pilot can use this to fly the ROV while the Survey Team can also simultaneously utilize Underwater Survey Explorer for survey tasks (e.g. markers, measurement, etc.). You will need a second processor to run Vantage. This software package can be used in two independent display screens.
